Edit

Edit fills in a form. It reads the fillable gaps off the document Parse produced, writes your values into them, and returns a filled PDF you can download. You do not map fields by hand: the node detects them. It lives in the Intelligence section of the Studio palette. Edit is in beta. The values come from two places: free-text instructions on the node, and reference documents you upload to the workflow once. A reference is your standing data, for example a company profile CSV or an employee handbook PDF. Every run fills from it without you retyping anything.

The node

{
  "id": "edit_1",
  "type": "edit",
  "instructions": "Name: ACME SL; Date: 2026-01-01; I accept the terms: yes",
  "reference_document_ids": ["069dcc2c-e14c-7606-8000-2ee4fb17b4e2"],
  "font": "sans",
  "output_mode": "flattened"
}

import os

from anyformat.sdk import Client

client = Client(api_key=os.environ["ANYFORMAT_API_KEY"])

workflow = (
    client.workflow("Fill onboarding form")
    .parse()
    .edit(
        instructions="Name: ACME SL; Date: 2026-01-01; I accept the terms: yes",
        reference_document_ids=["069dcc2c-e14c-7606-8000-2ee4fb17b4e2"],
    )
    .create()
)

// The TypeScript builder has no edit() method yet. Send the node in the
// workflow's `nodes` array with an edge from the Parse node:
const nodes = [
  { id: "parse_1", type: "parse" },
  {
    id: "edit_1",
    type: "edit",
    instructions: "Name: ACME SL; Date: 2026-01-01; I accept the terms: yes",
    reference_document_ids: ["069dcc2c-e14c-7606-8000-2ee4fb17b4e2"],
  },
];
const edges = [{ source: "parse_1", target: "edit_1" }];

The Python builder sets instructions and reference_document_ids. Set font and output_mode through the API JSON.

Reference documents

Upload references to the workflow first, then put the returned ids in reference_document_ids:

curl -X POST https://api.anyformat.ai/v3/workflows/$WORKFLOW_ID/edit-references/ \
  -H "Authorization: Bearer $ANYFORMAT_API_KEY" \
  -F "files=@company-profile.csv"

references = client.upload_edit_references(workflow.id, ["company-profile.csv"])
reference_ids = [r.id for r in references]

{
  "documents": [
    { "id": "069dcc2c-e14c-7606-8000-2ee4fb17b4e2",
      "name": "company-profile.csv",
      "status": "ready",
      "truncated": false,
      "error": null }
  ]
}

One upload takes 1 to 10 files: .csv, .txt, .md, .rst or .pdf. A text file comes back ready at once. A PDF comes back pending while anyformat parses it once, at upload, never on a run. Poll GET /v3/workflows/{workflow_id}/edit-references/ (Python: client.list_edit_references(workflow_id)) until it settles. A run whose Edit node names a reference that is not ready is refused, so the form is never filled from a partial reference. DELETE /v3/workflows/{workflow_id}/edit-references/{document_id}/ removes a reference; remove its id from the node in the same change.

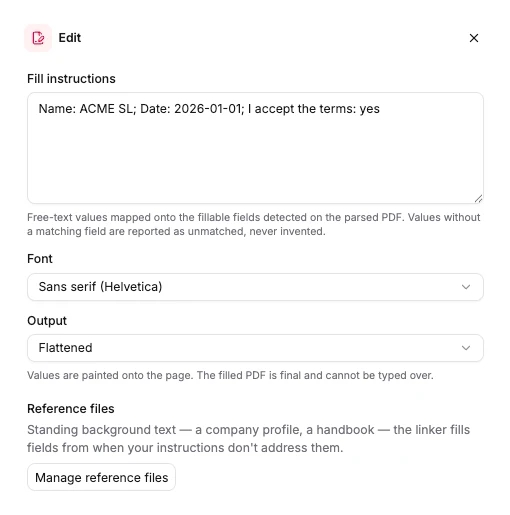

In Studio

Click the Edit node on the canvas to open its panel. The panel has a Fill instructions text box, a font picker, an output mode picker, and a reference files section where you upload and remove reference documents.

Options

Every field is optional. Omit a field and the default applies.

Field	Type	Default	What it does
`instructions`	string	`null`	Free-text values to write into the detected fields, for example `Name: ACME SL; Date: 2026-01-01; I accept the terms: yes`. Where an instruction and a reference address the same field, the instruction wins.
`reference_document_ids`	string[]	`[]`	Ids of reference documents uploaded to this workflow. Every id must belong to this workflow and be `ready`, or the run is refused.
`font`	`sans` \| `serif` \| `mono`	`sans`	Typeface the filled values are written in.
`output_mode`	`flattened` \| `editable`	`flattened`	`flattened` paints the values on and the PDF is final. `editable` leaves each value in a live form field a reviewer can correct in any PDF viewer.

The schema the API accepts is generated from the same source: Edit node schema.

Connects to

ParseEdit

Only Parse feeds Edit, and nothing follows it.

Edit reads geometry straight from the parsed document, so it sits directly after Parse. A Classify or Extract in between adds nothing it can use. The Python builder accepts one Edit node per workflow.

What it returns

Edit fills the edits section of the run results: one entry per file, with every form field the node detected, the value written into it, and a link to the filled PDF.

{
  "edits": [
    {
      "file_name": "onboarding-form.pdf",
      "fields": [
        { "form_field_id": "p1_f0", "label": "Full name", "state": "empty", "value": "ACME SL", "confidence": 95 }
      ],
      "unmatched_instructions": [],
      "download_url": "https://storage.anyformat.ai/filled/onboarding-form.pdf?X-Amz-Signature=…"
    }
  ]
}

download_url is valid for 15 minutes from the moment the response was built. Re-read the run for a fresh link instead of storing it. A field with state: "prefilled" is never overwritten and keeps value: null. confidence grades how surely an instruction addresses the field, not whether the written value is correct. unmatched_instructions lists the instruction fragments that matched no field.

Every key on a detected field

{
  "edits": [
    {
      "file_id": "069dcc2c-e14c-7606-8000-2ee4fb17b4e3",
      "file_name": "onboarding-form.pdf",
      "fields": [
        {
          "form_field_id": "p1_f0",
          "label": "Full name",
          "kind": "text",
          "state": "empty",
          "page": 1,
          "bbox": { "x0": 0.1, "y0": 0.1, "x1": 0.5, "y1": 0.16 },
          "value": "ACME SL",
          "confidence": 95
        }
      ],
      "unmatched_instructions": [],
      "download_url": "https://storage.anyformat.ai/filled/onboarding-form.pdf?X-Amz-Signature=…"
    }
  ]
}

The full field reference is on Get run. In the Python SDK, run.wait().edits holds the same entries.

Billing

35 credits per page of the form the node fills. A PDF reference costs 25 credits per page, once, when you upload it, because that upload is a parse. Runs that use the reference afterwards pay nothing for it. Text references (.csv, .txt, .md, .rst) are free. Full price list: How credits work.

Examples

Fill a supplier onboarding form from your company profile: upload company-profile.csv as a reference, build Parse → Edit with its id, run the blank form through the workflow, and download edits[0].download_url.
Let a reviewer correct the result: set output_mode: "editable" so every value stays in a live form field.
Parse-only workflow: the Parse node that Edit reads from.
